Troop Carrier

Model Options: 4x4 and 6x6 personnel carrier models are available.
Design and Dimensions:
- 4x4 Troop Carrier: Overall length is 4746mm, overall width is 2490mm, and overall height is 2380mm.
- Overall length is 5846mm, overall width is 2490mm, and overall height is 2380mm.
Capacity:

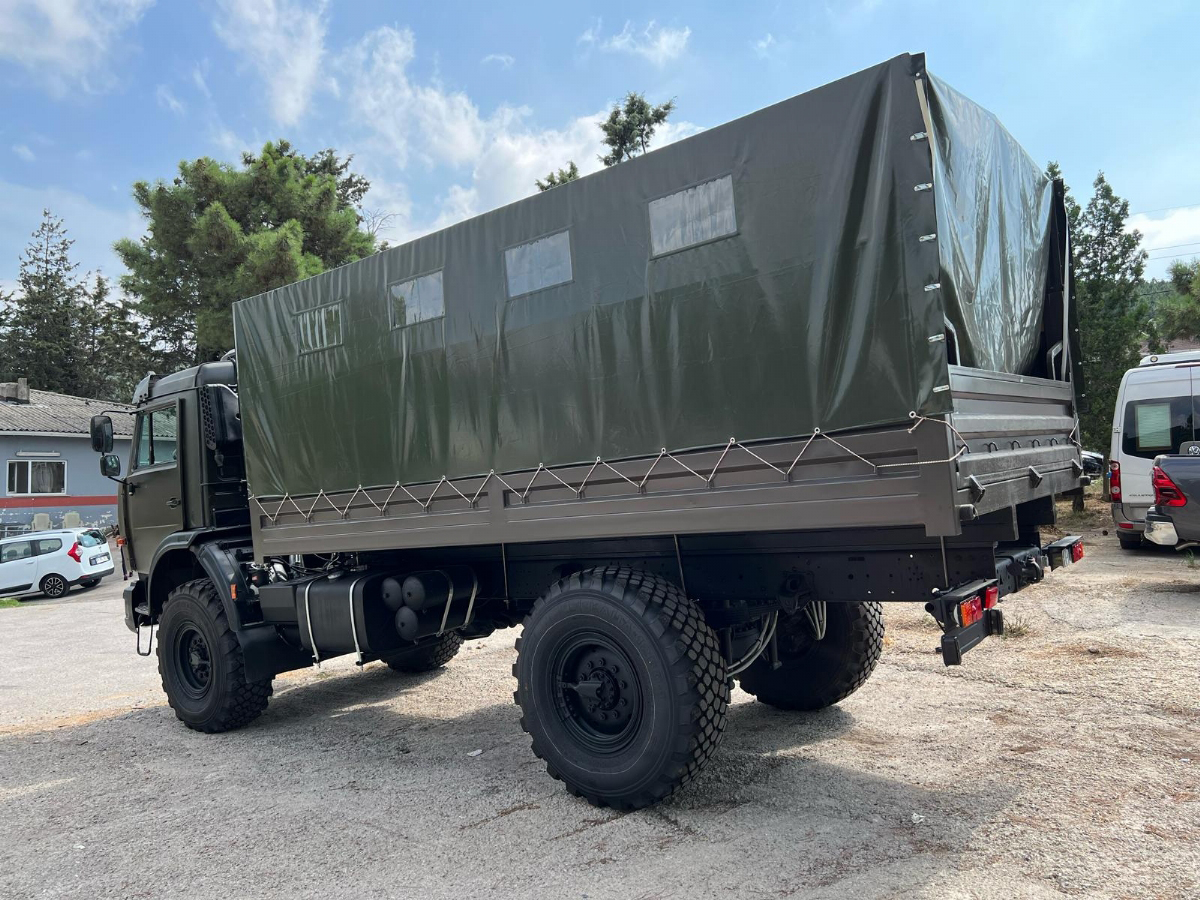

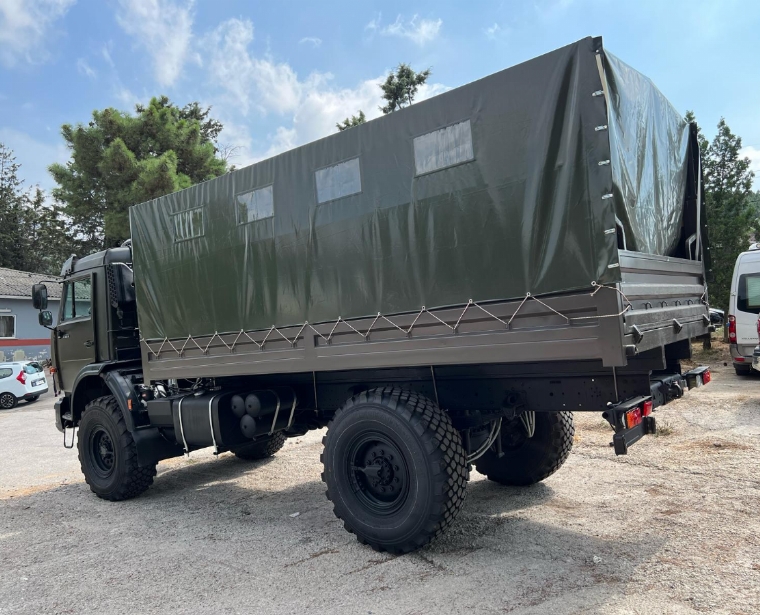

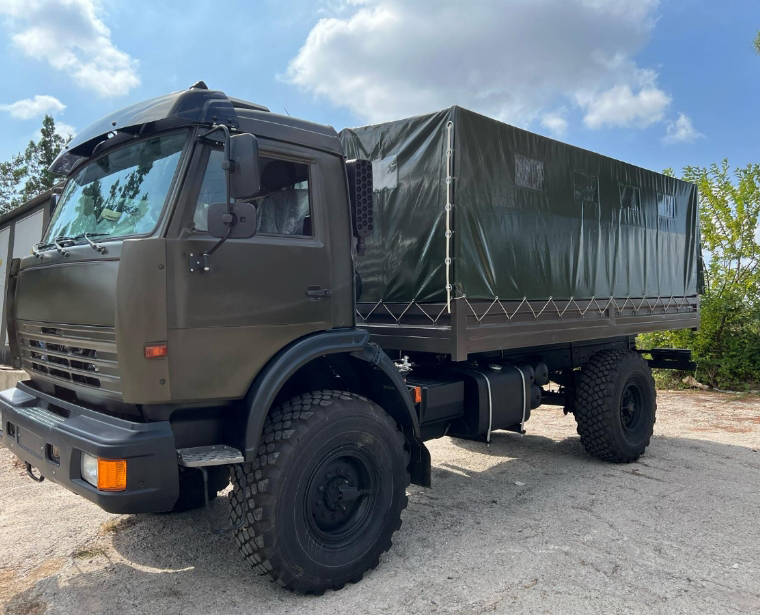

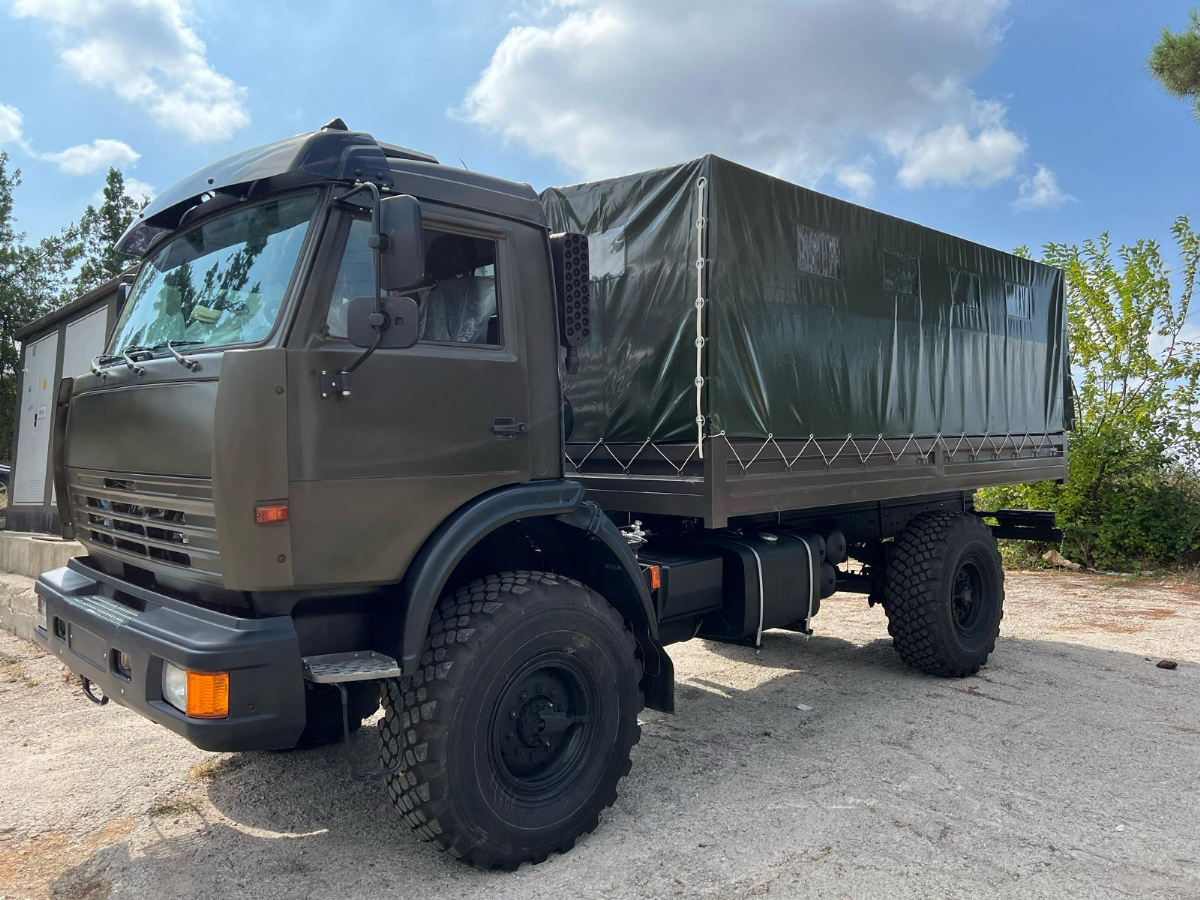

- 4x4 Troop Carrier: Has a seating capacity of 15 people.

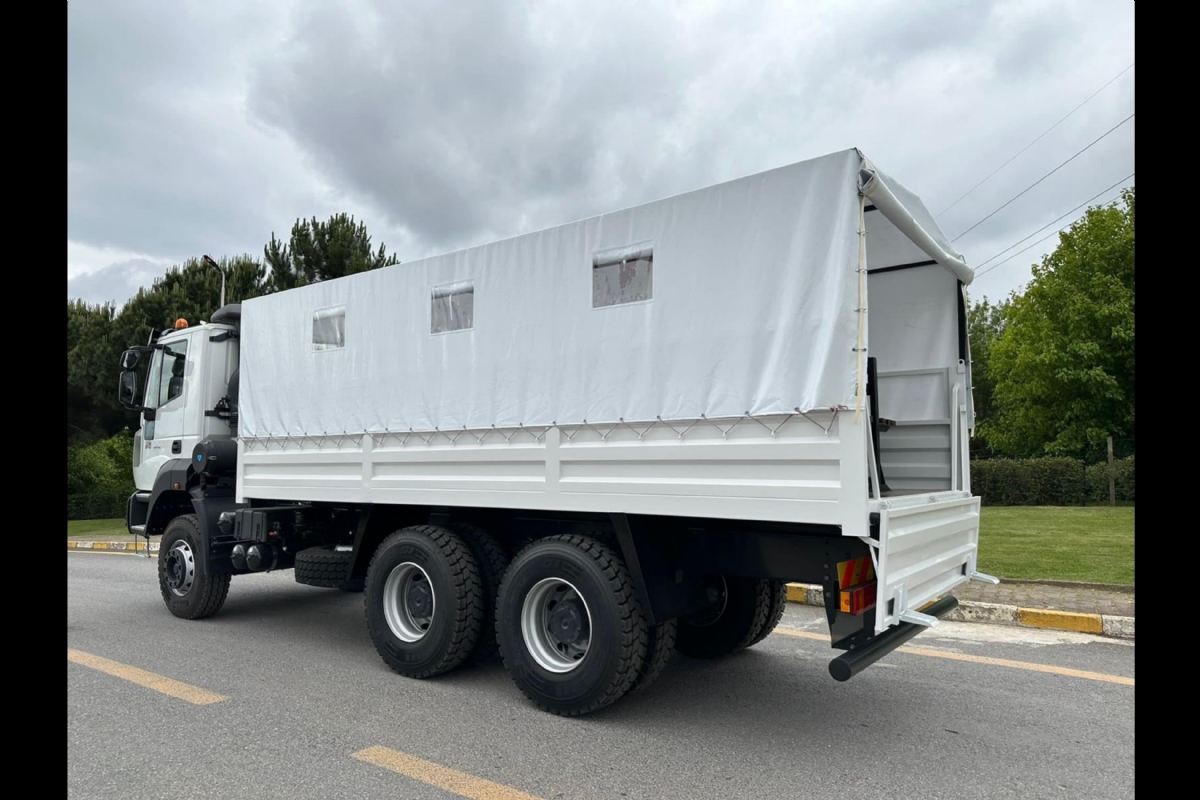

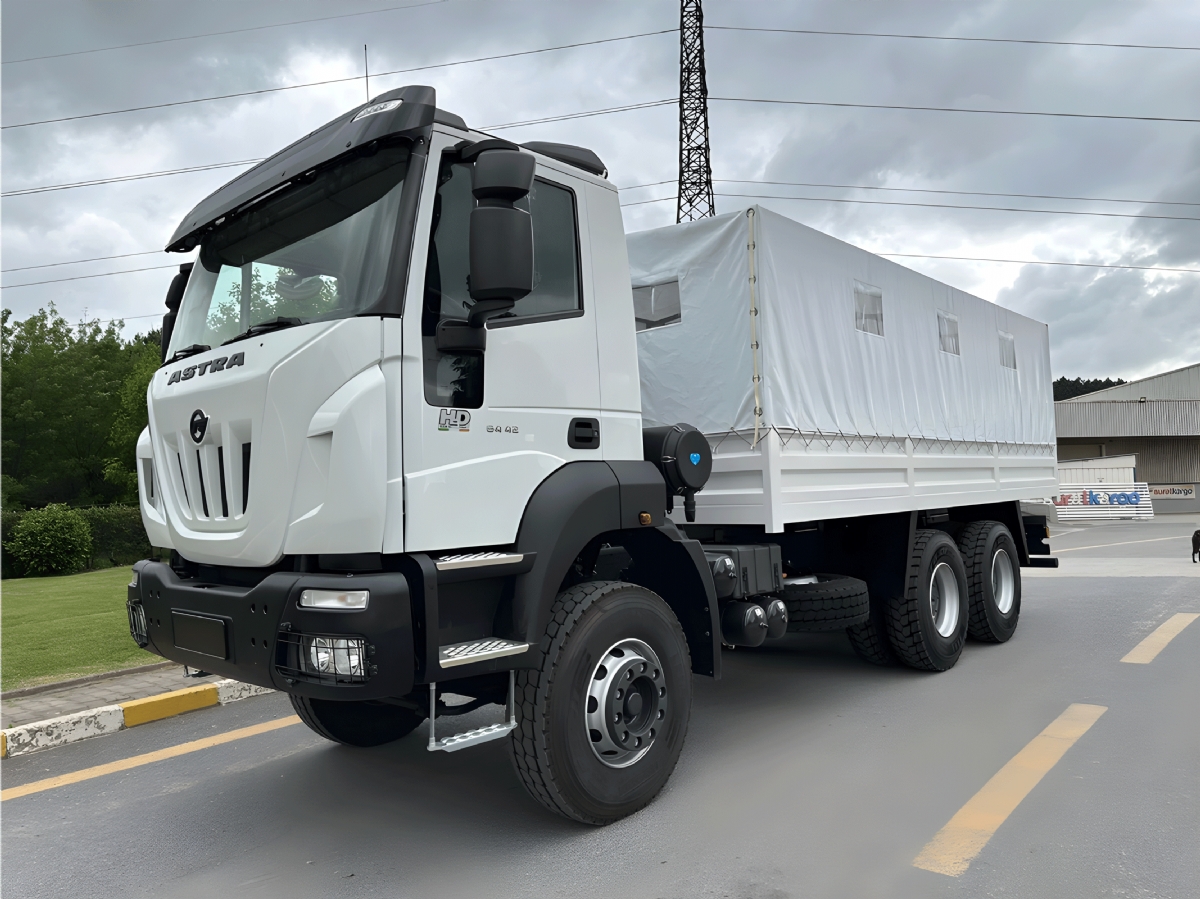

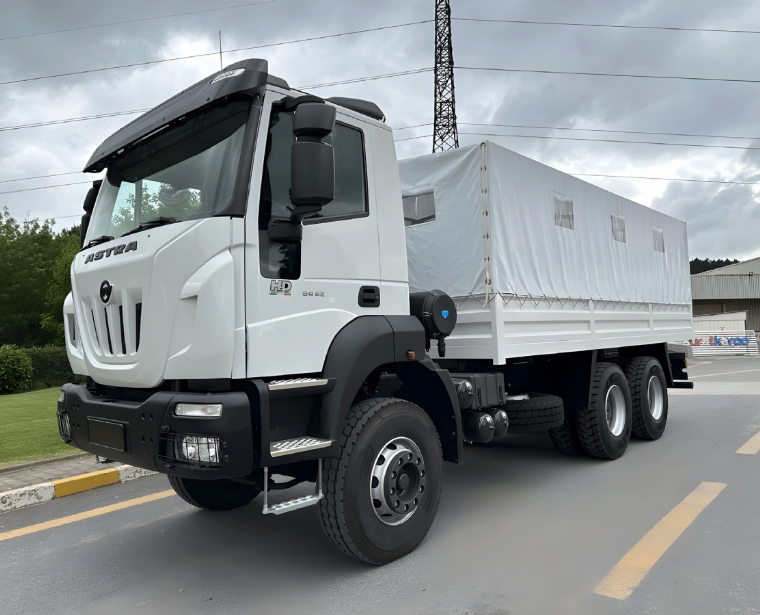

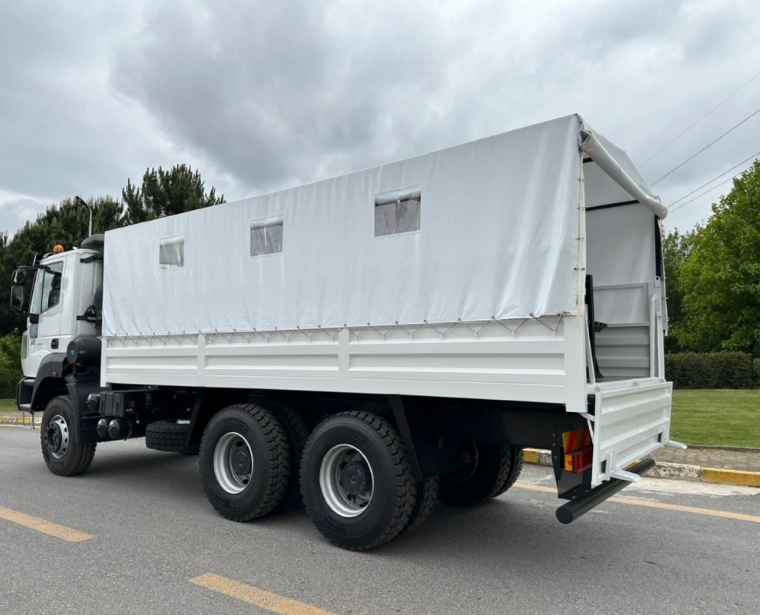

- 6x6 Troop Carrier: Has a seating capacity of 30 people.
Military Area Features:
- The seating arrangement is 3-line.
- Seating size includes a width of 500mm, a height of 450mm, and legroom of 400mm.
- A fold-out ladder is present on the rear door.
- The vehicles are painted with military camouflage paint.
Body Structure and Materials:
- The door is a rear door with a ladder.
- The lower seat material is 12mm wood, and the backrest material is 8mm wood.
- The seat frame material is 40x40 profile and 3mm st37 sheet metal.
- The auxiliary chassis material is U-Bending 5mm ST52.
- Side panels are made of 2mm S235, and side panel brackets are made of 4mm S235.
- The tent frame material is 3/4" Pipe.
- A tool and supplies cabinet is included.
- Regulation-compliant rear bumper and side barrier are present.
